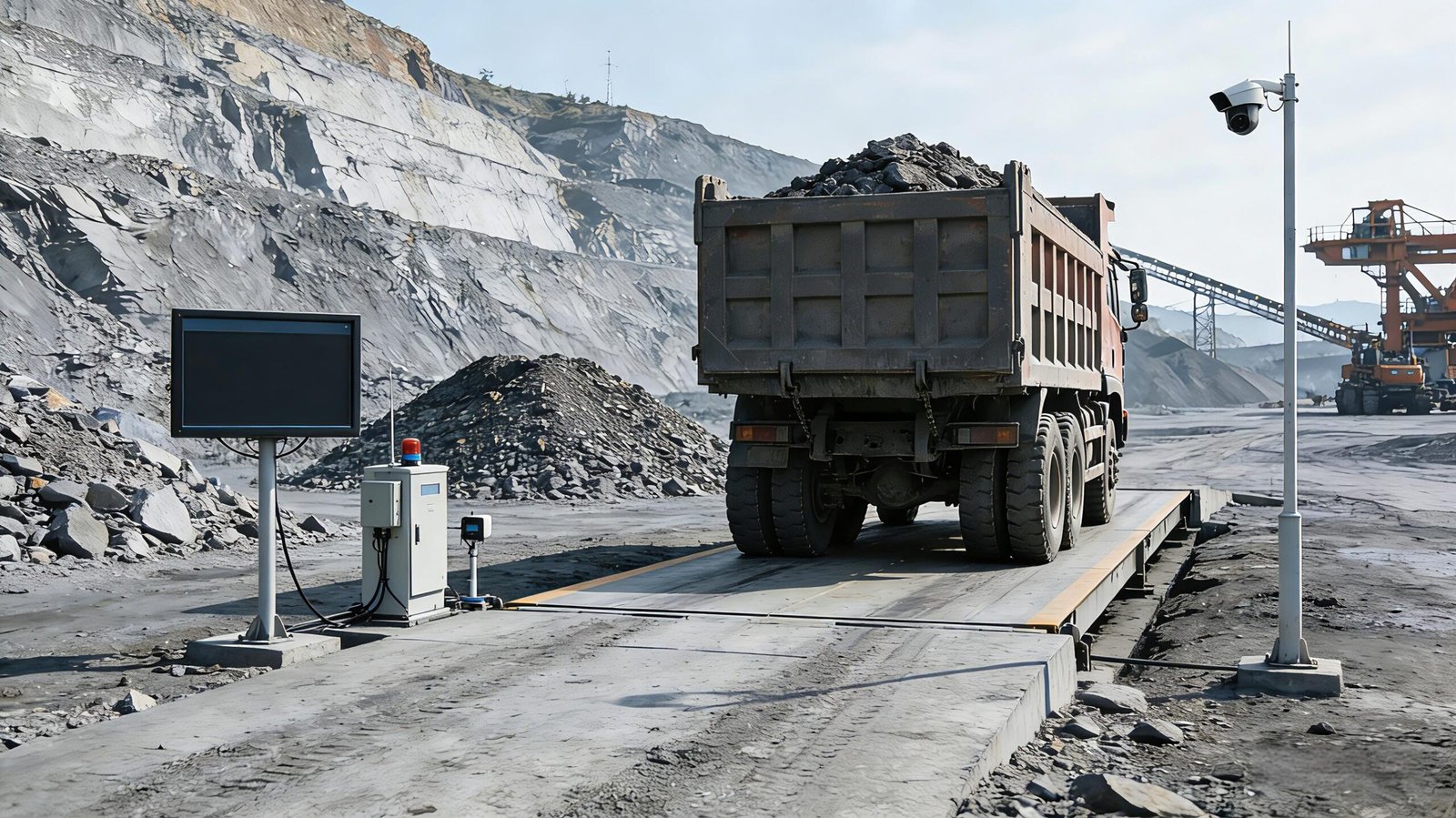

An unattended truck scale (unattended weighbridge) is a fully automatic and unmanned intelligent weighing system. It integrates license plate/RFID recognition, infrared positioning, barrier gate, video, voice, and weighing software to realize a closed-loop full process of vehicle entry → automatic identification → accurate weighing → data archiving → automatic release. Each vehicle only takes 5–15 seconds, completely replacing the weighbridge operator.
| Fujian Fangda Unmanned Weighbridge General Parameter Table
Version-FSG,Steel material：High quality Q235B steel | |||
| Display Mode | LED | Protection Grade | IP68 |
| customized support | OEM, ODM, OBM | type | Truck Scale, Vehicle Weighing Scale, Weighbridge |
| Weighing Method | Static weighing | structure | U-shaped steel |
| operational environment | Non-explosion-proof type | Lightning Protection Design | With lightning protection |
| power | AC220/Hz50 | Delivery Time | Within 15-30days |
| Weighing Range | 30ton-200ton | Panel thickness | 8mm~14mm |
| Transport Packaging | Load with 20-foot or 40-foot standard containers | Certification Description | FSG, ISO9001: 2005 |
| Working temperature | -10~40°C(indicator), -30~75°C (load cell) | Sensor | C3/C6 |
| brand | Fangda | Production Capacity | 1000 Sets/Sets Per Year |
| HS Code | 8423891090 | Source | Zhang Zhou, Fujian, China |
| Custom Size： | 2.5*5m,2.5*6m,3*5m,3*12m,3*16m,3*18m,3*24m，and others, which can be customized according to actual needs. | ||
FAQ:
A: Fujian Fangda’s intelligent unmanned weighbridge system adopts AI License Plate Recognition (LPR) and infrared anti-fraud sensors to ensure accurate truck positioning and identification. It generates a tamper-proof digital record throughout the weighing process, effectively eliminating human errors and unauthorized data modifications that may lead to fraud.
Overview
Features:
- 1: Industrial weighing system equipped with anti-tampering features, enabling unattended operation.
- 2: The SCS series of truck scales has an accuracy class of C3/C6 and is OIML-certified.
- 3: National accuracy class III, with a verification scale interval of 3000–6000.
- 4: Standard platform widths are 2.5 m and 3 m, with customization available upon request; standard platform lengths range from 5 m to 20 m, and can be customized based on vehicle models.
- 5: Maximum permissible error: 0–500 e: ±0.5 e; 500 e–2000 e: ±1.0 e; 2000 e–maximum capacity: ±2.0 e.
- 6: Sensor accuracy class: C3; total error ≤ 0.02% FS
- 7: Operating temperature (indicator): -10°C to 40°C;
- 8: Sensor: -30°C to 70°C; relative humidity ≤ 90% RH, no condensation
- 9: Protection rating (sensor): IP67/IP68;
- 10: Instrument: IP65
- 11: Power requirements: AC 187 V–242 V, 50 Hz
- 12: Safe overload: 125% FS; Maximum overload: 300% FS
