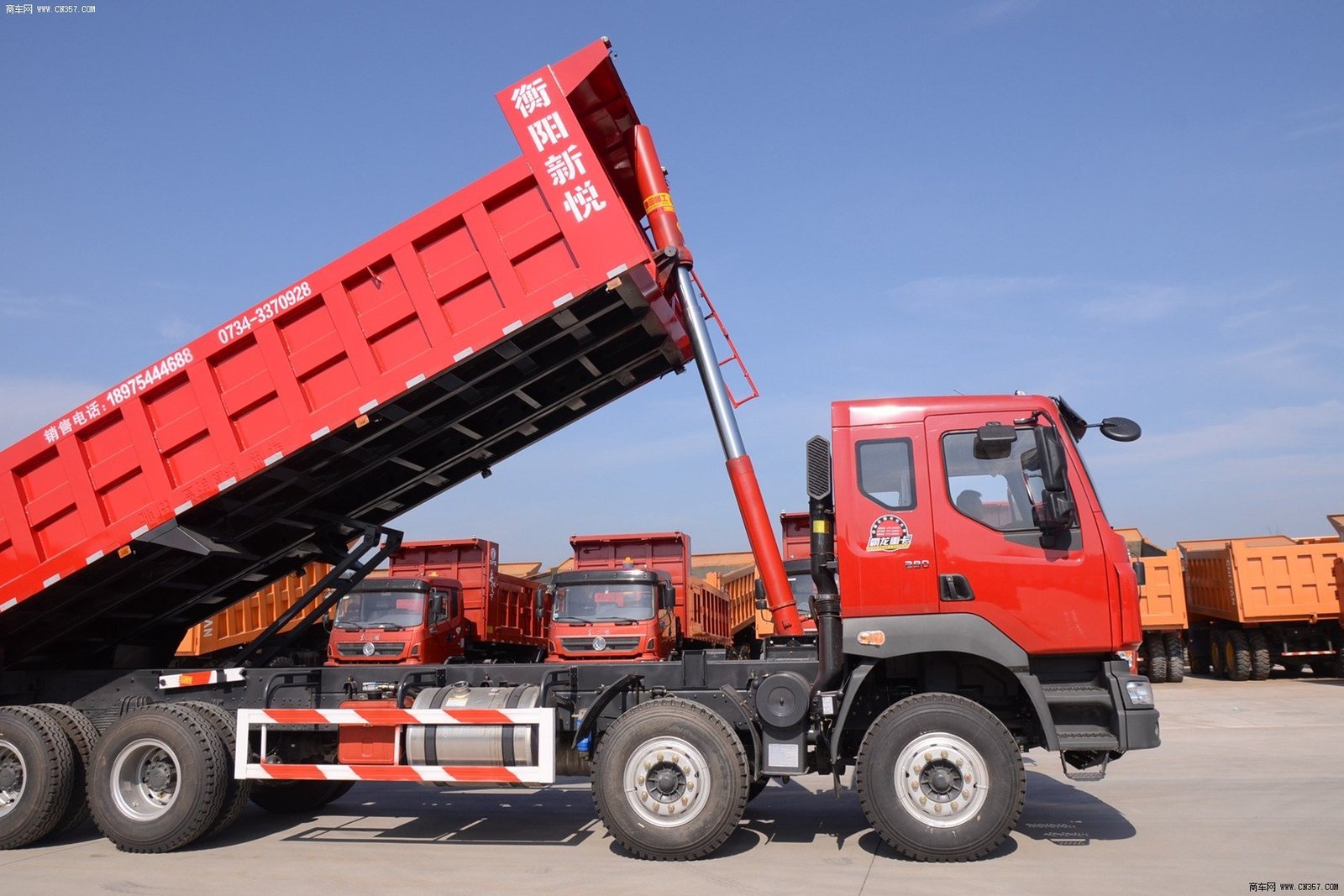

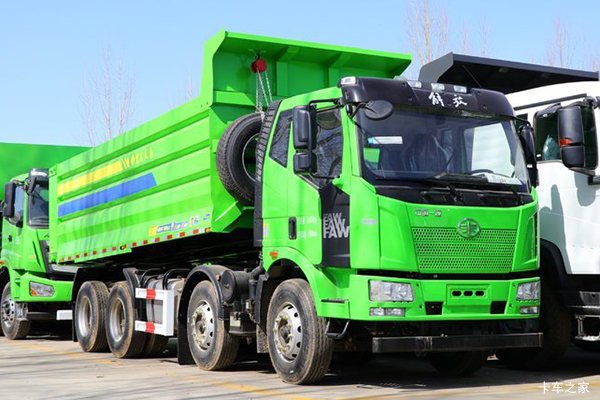

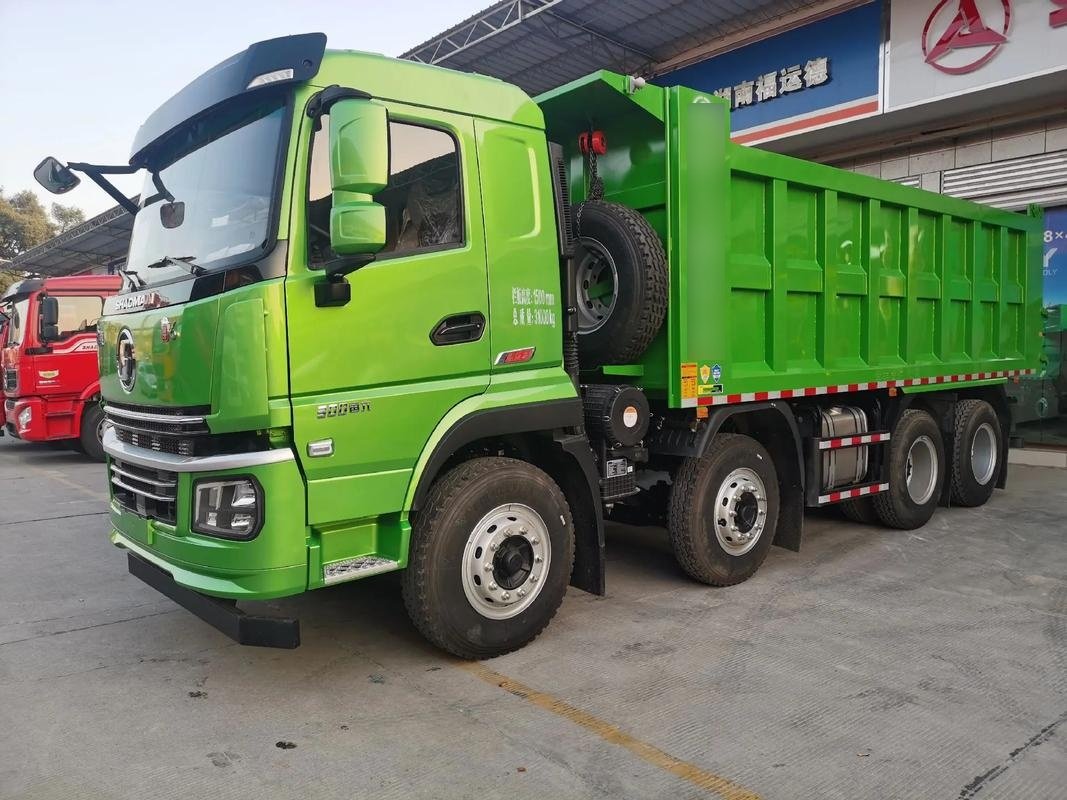

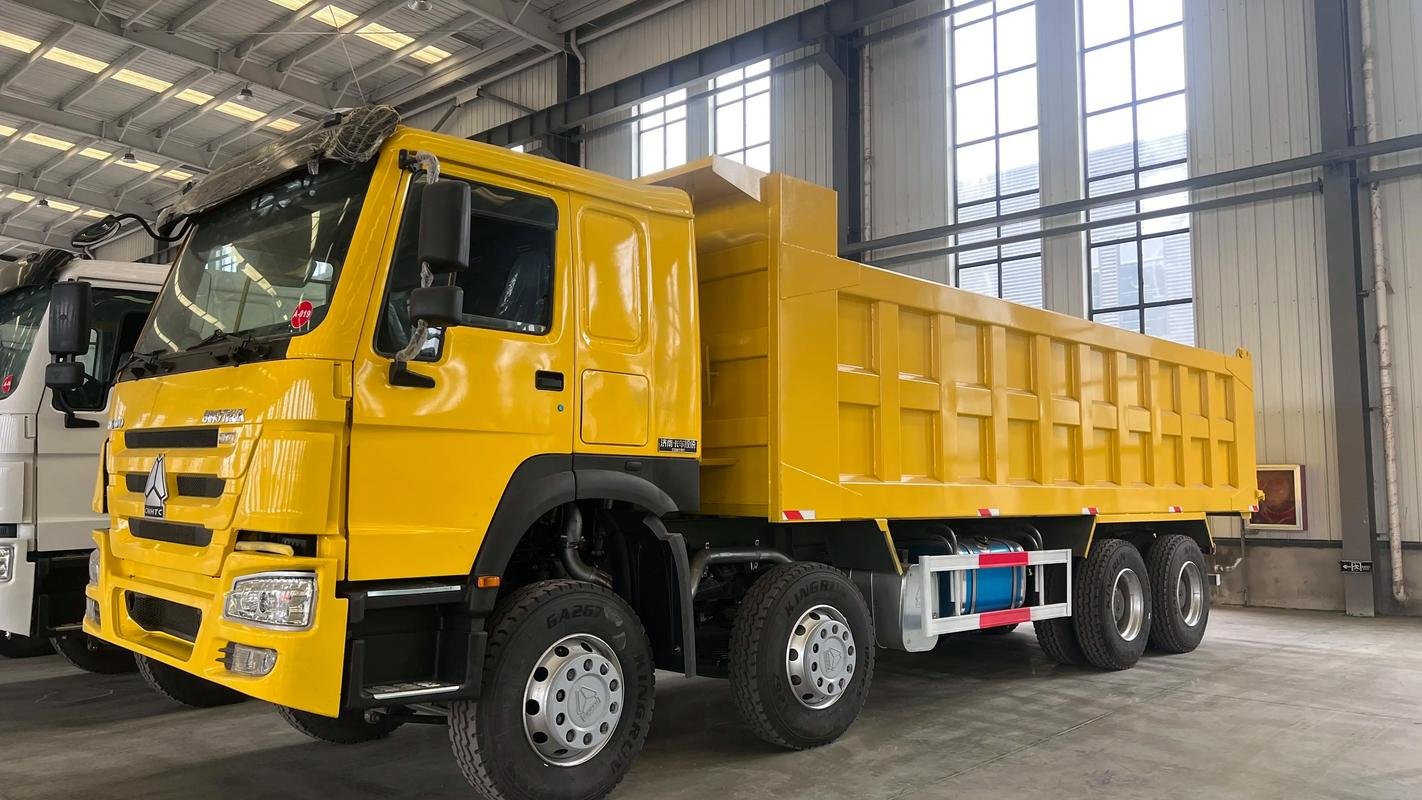

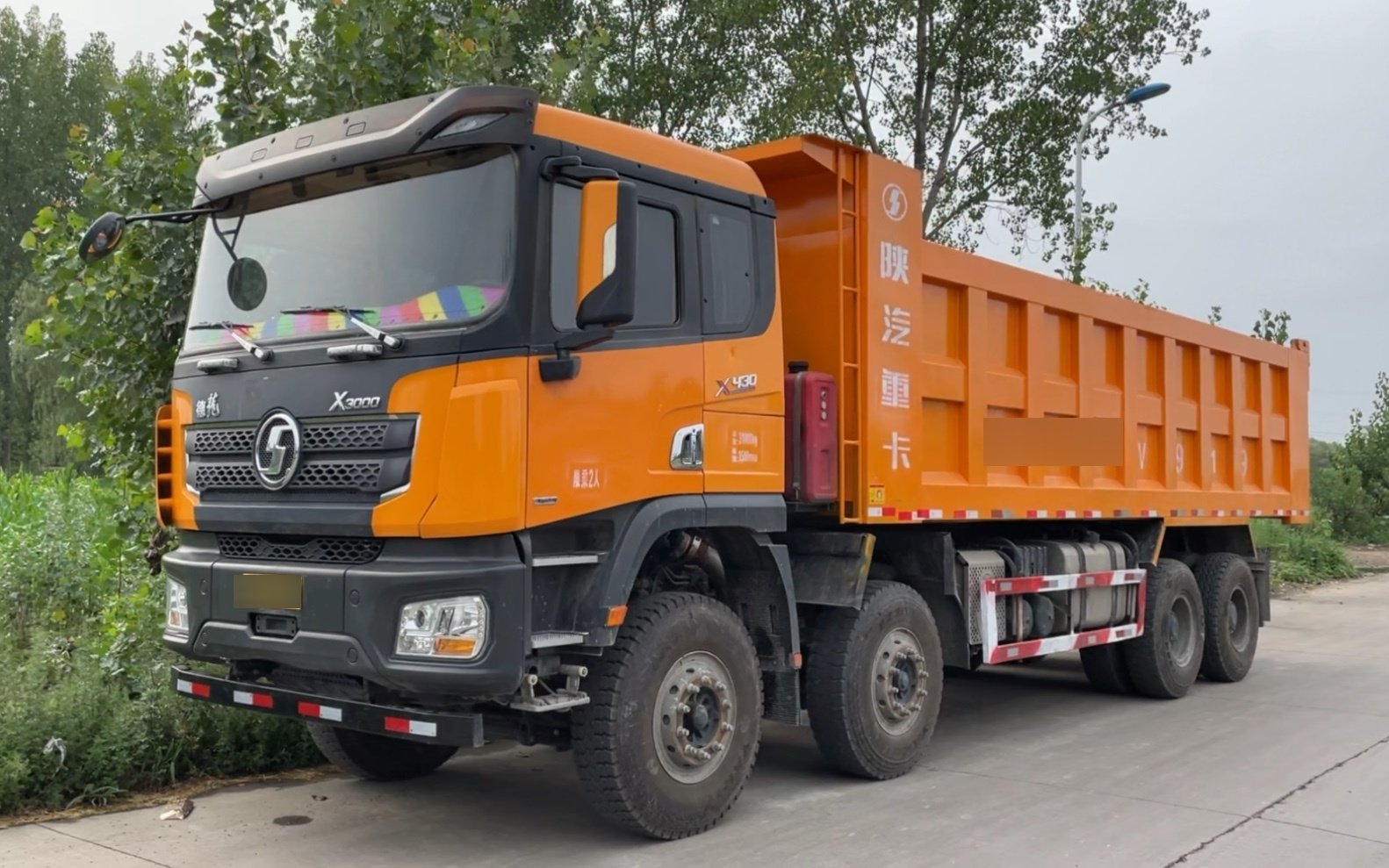

8×4 Rear Tipping Dump Truck

Features:

• （II）Power System
• 1. Engine Model: Sinotruk WD615.371 / Shacman WP10.380 / Dongfeng ISDe375 (Export Custom Version)
• 2. Horsepower: 371HP - 420HP (380HP/420HP preferred for mining heavy-load)
• 3. Transmission: 10-speed / 12-speed manual transmission (with synchronizer, suitable for heavy-load climbing)
• 4. Clutch: Φ430mm dry clutch, reinforced pressure plate, suitable for heavy-load working conditions
• （III）Load-bearing System
• 1. Axles: 4 heavy-duty axles (2 front steering axles, 2 rear drive axles), axle load 16 tons/axle, reinforced axles
• 2. Tires: 12.00R20 / 11.00R20 mining-specific wear-resistant tires, 8 pieces (including 1 spare tire)
• 3. Suspension: Mining-specific reinforced leaf spring suspension (10 main springs + 8 auxiliary springs), air suspension optional
• 4. Frame: 300×80×8mm high-strength manganese steel frame, double-layer reinforced, suitable for mine impact conditions
• 5. Brake System: Air brake system with ABS anti-lock braking system; retarder optional (suitable for long downhill mine sections)
• （IV）Cargo Box Parameters
• 1. Cargo Box Type: U-shaped rear tipping cargo box (mining-specific, reducing material residue and improving unloading efficiency)
• 2. Cargo Box Size (L×W×H): 6.0m×2.3m×1.8m / 6.5m×2.4m×1.9m (optional, customizable on request)
• 3. Cargo Box Volume: 24–32m³ (suitable for materials of different densities, more efficient for ore loading)
• 4. Cargo Box Material: 16mm wear-resistant manganese steel plate (bottom plate thickened to 20mm), impact-resistant and wear-resistant
• 5. Tipping System: Dual-cylinder hydraulic rear tipping system, lifting time 18–22 seconds, maximum lifting angle 45°, with limit protection
• （V）Load Capacity & Dimensions
• 1. Curb Weight: 16–18 tons (slightly different according to cargo box size and configuration)
• 2. Rated Load Capacity: 45–55 tons (compliant load); actual mining heavy-load up to 60–70 tons (short-distance transportation)
• 3. Gross Vehicle Weight (GVW): 65–85 tons (suitable for mining heavy-load needs, adjustable according to destination regulations)
• 4. Overall Vehicle Dimensions (L×W×H): 8.8m×2.5m×3.8m / 9.3m×2.5m×3.9m (corresponding to different cargo box sizes)
• （VI）Other Configurations
• 1. Cab: Flat roof / high roof cab, with air conditioning and shock-absorbing seats, suitable for long-time mining operations
• 2. Fuel Tank Capacity: 400L large fuel tank, suitable for long-distance mining transportation, reducing refueling frequency
• 3. Warranty: providing export after-sales parts support
• Note: All parameters are for reference only. We can customize the configuration (horsepower, cargo box size, load capacity, etc.) according to the customer's specific needs and the regulations of the destination country.
